Design Features
Leading Manufacturer & Exporter of Lobe Pumps, SS Lobe Pump, Rotary Lobe Pumps, India

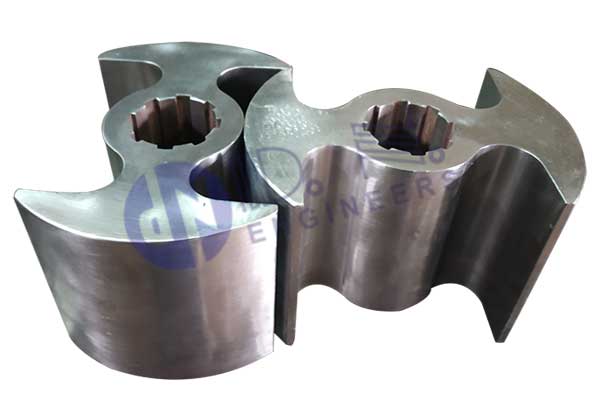

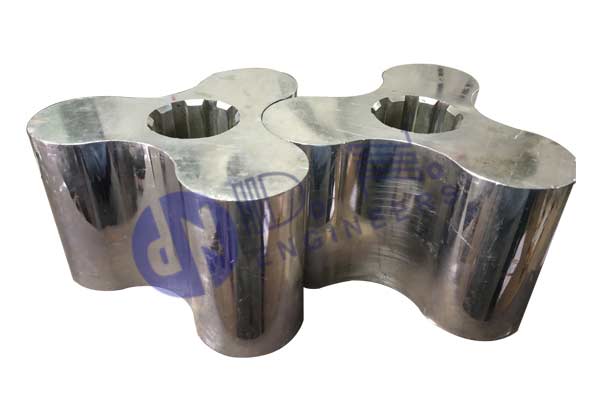

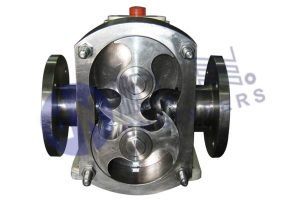

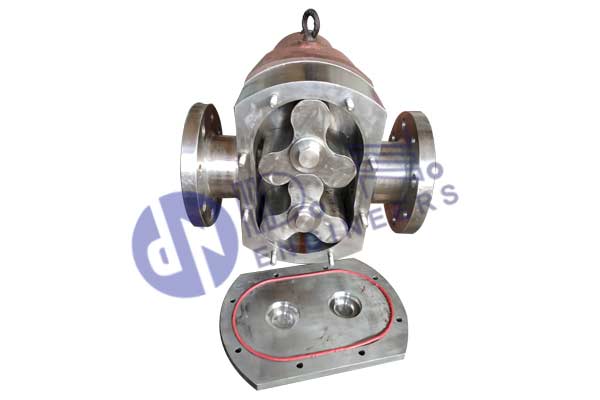

SOL-Series Lobe Pumps are positive displacement ( pd ) external SS-316 Rotary Lobe Pumps are similar to external gear pumps in operation in that fluid flows around the interior of the casing. Unlike external gear pumps, however, the lobes do not make contact. Lobe contact is prevented by external timing gears located in the gearbox. Pump shaft support bearings are located in the gearbox, and since the bearings are out of the pumped liquid. As the lobes come out of mesh, they create expanding volume on the inlet side of the pump. Liquid flows into the cavity and is trapped by the lobes as they rotate. Liquid travels around the interior of the casing in the pockets between the lobes and the casing and it does not pass between the lobes. Finally, the meshing of the lobes forces liquid through the outlet port under pressure.
Applications
Lobe pumps are frequently used in food applications because they handle solids without damaging the product. Ideal for pumping highly viscous liquids like Butters, Chocolates, Fruit Pulps, Flavorings, Frostings, Fats & Oil, Yeast Slurry, Sugar Syrups, Creams, Meat Chunk, Soup & Sauces, Tooth Paste, Resins, Jams, Jellies chocolate mixtures, Ice Cream, essential oil, shampoo , cheese, Face cream , Lotions, Baby Foods, tomato ketchup, fruit juice etc.

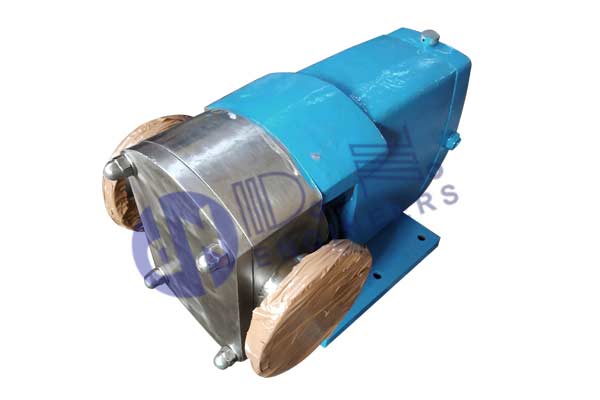

LOBE PUMPS MODEL NO. DN B57
| TECHNICAL SPECIFICATION | |
| Lobe Pumps Model No. | DN B57 |
| Capacity | UP TO 6000 to 8000 LPH |
| Head | UP TO 10 KG/CM2 PRESSURE |
| Size | 3”X3” |
| MOC | SS 316 |
LOBE PUMPS MODEL NO. DN B300
| TECHNICAL SPECIFICATION | |
| Lobe Pumps Model No. | DN B300 |
| Capacity | UP TO 4000 to 5000 LPH |
| Head | UP TO 10 KG/CM2 PRESSURE |
| Size | 2”X2.5” |
| MOC | SS 316 |
LOBE PUMPS MODEL NO. DN B300
| TECHNICAL SPECIFICATION | |
| Lobe Pumps Model No. | DN B330 |
| Capacity | UP TO 10,000 to 12,000 LPH |
| Head | UP TO 10 KG/CM2 PRESSURE |
| Size | 4”X4” |
| MOC | SS 316 |
Lobe Pump Spare Part Manufacturer
We are one of the best lope pump spare part manufacturer in Ahmedabad, Gujarat, India. Our firm, D.N. Engineers has been offering lobe pumps for a long time that are designed specifically for pharmaceutical, cosmetics and food industry. They are appropriate for pumping butter, chocolate, syrup, ketchup, face cream, shampoos, jelly, etc., in their respective industries. These lobe pumps are fabricated with hardened and ground timing gears for delivering high performance without metallic inclusion. They are used in a multiplicity of industries including, pulp and paper, food, beverage, chemical, pharmaceutical and biotechnology. They are fashionable in these diverse industries because they offer outstanding sanitary qualities, reliability, high efficiency, corrosion resistance, and good clean and sterilize characteristics.
We also supply Spare for JOHNSON lobe pump, Rotary Lobe Pump, OMAC lobe pump spare and Lobe pump. We are a foremost manufacturer and supplier of lobe pumps spares for many pharmaceutical, beverages, food processing, dairy and other allied industries. The spares are fabricated from high quality of stainless steel. The high-quality layout of those pumps has been finalized after years of lengthy research. The pumps are durable, proof against corrosion, clean to put in and operate. Our quality test department assessments each pump going out of our centers for protection and leak evidence operations. Our firm is capable to supply our outstanding spare parts all over the country. We are considered as Lobe pump supplier in Mumbai, Coimbatore, Delhi, Bangalore, Kolkata and many more
Applications
- Paper coatings
- Paints and dyes
- Soaps and surfactants
- Polymers
- Rubber and adhesives
- Pharmaceuticals
